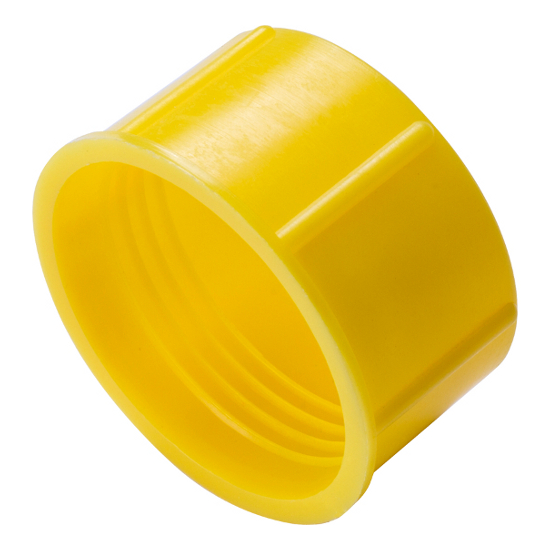

- SCREW CAPS FOR UNF THREADS WITH EASY FIT PUSH-AND-TURN
- Material:
LD-PE
- Colour:
Yellow
- Dimensions:
mm.

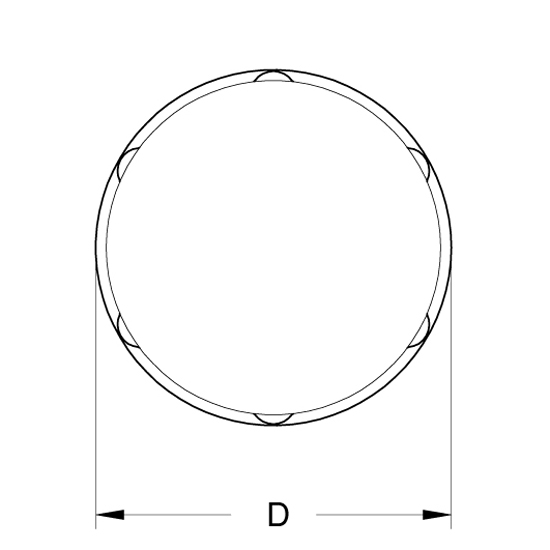

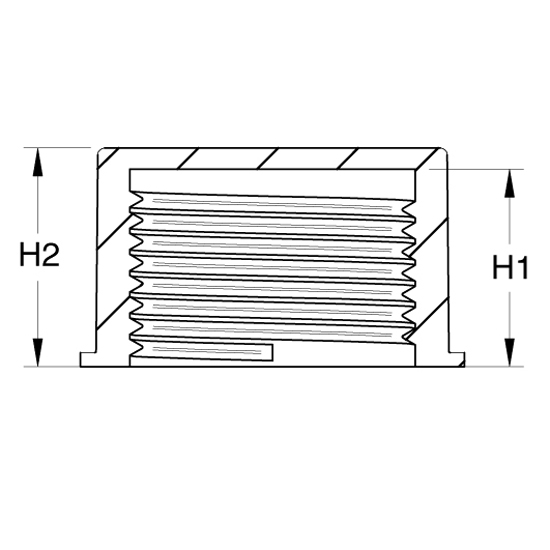

| REFERENCE | Thread | D | H1 | H2 |
|---|
| KAP 080 3/8"-24 UNF |
3/8" -24 |
13,6 |
11,3 |
12,5 |
| KAP 080 7/16"-20 UNF |
7/16"-20 |
15,6 |
11,9 |
13,3 |
| KAP 080 1/2"-20 UNF |
1/2" -20 |
17,0 |
14,1 |
15,3 |
| KAP 080 9/16"-18 UNF |
9/16"-18 |
18,7 |
12,5 |
13,9 |
| KAP 080 5/8"-18 UNF L |
5/8" -18 |
20,0 |
17,9 |
19,3 |
| KAP 080 11/16"-16 UNF |
11/16"-16 |
21,2 |
10,6 |
11,7 |
| KAP 080 11/16"-16 UNF L |
11/16"-16 |
21,2 |
14,2 |
15,5 |
| KAP 080 3/4"-16 UNF |
3/4" -16 |
23,6 |
17,6 |
19,2 |
| KAP 080 13/16"-16 UNF |
13/16"-16 |
24,7 |
14,2 |
15,5 |
| KAP 080 7/8" -14 UNF |
7/8" -14 |
27,0 |
19,5 |
21,2 |
| KAP 080 1" -14 UNF |
1" -14 |
30,0 |
16,1 |
17,3 |
| KAP 080 1" 1/16 -12 UNF |
1" 1/16 -12 |
31,7 |
20,1 |
21,7 |
| KAP 080 1" 3/16 -12 UNF |
1" 3/16 -12 |
35,0 |
21,1 |
22,7 |
| KAP 080 1" 5/16 -12 UNF |
1" 5/16 -12 |
39,3 |
21,1 |
22,9 |
| KAP 080 1" 7/16 -12 UNF |
1" 7/16 -12 |
44,0 |
21,0 |
22,8 |
| KAP 080 1" 5/ 8 -12 UNF |
1" 5/8 -12 |
48,1 |
18,5 |
19,7 |
| KAP 080 1" 5/ 8 -16 UNF |
1" 5/8 -16 |
48,1 |
18,5 |
19,7 |
| KAP 080 1"11/16 -12 UNF |
1"11/16 -12 |
52,0 |
23,0 |
24,5 |
| KAP 080 1" 7/ 8 -12 UNF |
1" 7/8 -12 |
57,0 |
23,0 |
24,5 |
| KAP 080 2" -12 UNF |
2" -12 |
60,0 |
23,0 |
24,5 |
| KAP 080 2" 1/ 4 -12 UNF |
2" 1/4 -12 |
66,0 |
23,0 |
24,5 |
| KAP 080 2" 1/ 2 -12 UNF |
2" 1/2 -12 |
72,0 |
23,0 |
24,5 |
