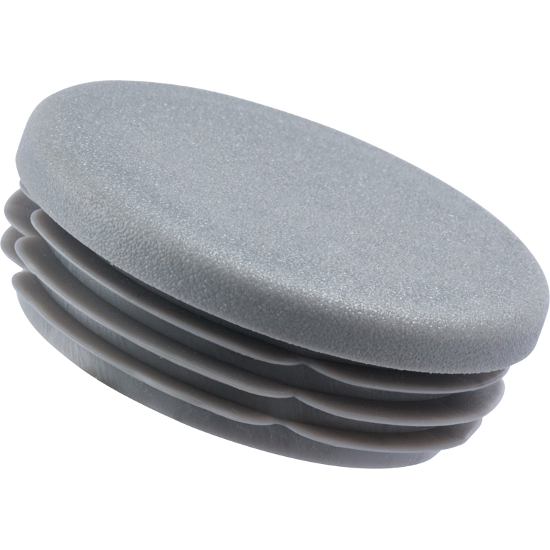

KAP 510-7042

  • ROUND PLUGS WITH RIBS AND FLAT HEAD
  • Material: LD-PE
  • Colour: grey

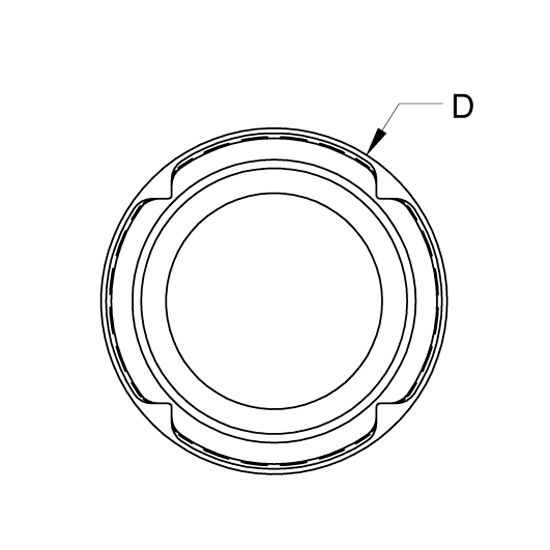

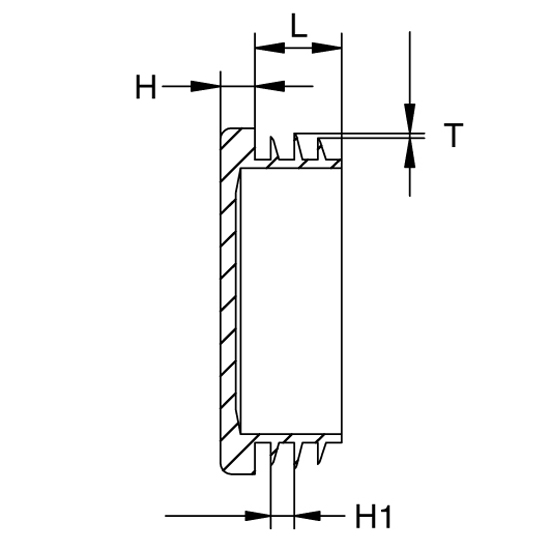

  • Dimensions: mm.

REFERENCEDHH1LT
KAP 510-7042    10 x 0,8-1,5 10 (9,9-25/64") 3,5 2,0 11,5 0,8-1,5
KAP 510-7042    12 x 0,8-2 12 (11,9-15/32") 3,5 2,5 11,5 0,8-2
KAP 510-7042    13 x 0,8-2 13 (12,7-1/2") 4,0 3,0 11,5 0,8-2
KAP 510-7042    14 x 0,8-2 14 (13,9-35/64") 5,0 3,0 11,5 0,8-2
KAP 510-7042    15 x 0,8-2 15 (15,1-19/32") 3,0 3,0 11,5 0,8-2
KAP 510-7042    16 x 0,8-2 16 (15,9-5/8") 5,0 3,0 11,5 0,8-2
KAP 510-7042    16 x 1,5-2,5 16 (15,9-5/8") 8,0 3,0 20,0 1,5-2,5
KAP 510-7042    18 x 0,25-1,5 18 (17,9-45/64") 5,0 3,0 11,5 0,25-1,5
KAP 510-7042    18 x 0,8-2,5 18 (17,9-45/64") 5,0 3,0 11,5 0,8-2,5
KAP 510-7042    18 x 2,5-3,5 18 (17,9-45/64") 5,0 3,0 11,5 2,5-3,5
KAP 510-7042    19 x 0,8-2,5 19 (19,1-3/4") 5,0 3,0 11,5 0,8-2,5
KAP 510-7042    20 x 0,8-2,5 20 (19,8-25/32") 5,0 3,0 11,5 0,8-2,5
KAP 510-7042    21 x 0,8-2,5 21 (53/64") 5,0 3,0 11,5 0,8-2,5
KAP 510-7042    22 x 0,8-3 22 (22,2-7/8") 5,0 3,0 11,5 0,8-3
KAP 510-7042    22 x 2-4 22 (22,2-7/8") 5,0 3,0 11,5 2-4
KAP 510-7042    23 x 0,8-3 23 (29/32") 5,0 3,0 11,5 0,8-3
KAP 510-7042    24 x 0,8-2,5 24 (23,8-15/16") 5,0 3,0 11,5 0,8-2,5
KAP 510-7042    25 x 1-3 25 (63/64") 5,0 3,0 11,5 1-3
KAP 510-7042    25 x 3-5 25 (63/64") 5,0 3,0 11,5 3-5
KAP 510-7042    25,4 x 1,2-3,2 25,4 (1") 5,0 3,0 11,5 1,2-3,2
KAP 510-7042    26 x 0,8-3 26 (25,8-1 1/64") 5,0 3,0 11,5 0,8-3
KAP 510-7042    27 x 0,8-3 27 (1 1/16") 5,0 3,0 11,5 0,8-3
KAP 510-7042    28 x 0,8-2,5 28 (27,8-1 3/32") 5,0 3,0 11,5 0,8-2,5
KAP 510-7042    30 x 0,8-2,5 30 (29,8-1 11/64") 5,0 3,0 11,5 0,8-2,5
KAP 510-7042    30 x 2,5-4,5 30 (29,8-1 11/64") 5,0 3,0 11,5 2,5-4,5
KAP 510-7042    32 x 0,8-3 32 (31,8-1 1/4") 5,0 3,0 11,5 0,8-3
KAP 510-7042    32 x 2,5-4,5 32 (31,8-1 1/4") 5,0 3,0 11,5 2,5-4,5
KAP 510-7042    34 x 0,8-3 34 (34,1-1 11/32") 5,0 3,0 11,5 0,8-3
KAP 510-7042    34x3,5-4 (3-5) 34 (34,1-1 11/32") 5,0 3,0 11,5 3,5-4 (3-5)
KAP 510-7042    35 x 1-3 35 (34,9-1 3/8") 5,0 3,0 11,5 1-3
KAP 510-7042    35 x 3-5 35 (34,9-1 3/8") 5,0 3,0 11,5 3-5
KAP 510-7042    36 x 1-3 36 (36,1-1 27/64") 5,0 3,0 11,5 1-3
KAP 510-7042    37 x 1-3 37 (36,9-1 29/64") 5,0 3,0 11,5 1-3
KAP 510-7042    38 x 1-3 38 (38,1-1 1/2") 5,0 3,0 11,5 1-3
KAP 510-7042    38 x 3-5 38 (38,1-1 1/2") 5,0 3,0 11,5 3-5
KAP 510-7042    40 x 1-3 40 (40,1-1 37/64") 5,0 3,0 11,5 1-3
KAP 510-7042    40 x 3-5 40 (40,1-1 37/64") 5,0 3,0 11,5 3-5
KAP 510-7042    42 x 0,8-2,5 42 (42,1-1 21/32") 5,0 3,0 11,5 0,8-2,5
KAP 510-7042    42 x 2,5-5 42 (42,1-1 21/32") 5,0 3,0 11,5 2,5-5
KAP 510-7042    43 x 2-2,5 43 (42,9-1 11/16") 5,0 3,0 11,5 2-2,5
KAP 510-7042    43 x 3-3,5 43 (42,9-1 11/16") 5,0 3,0 11,5 3-3,5
KAP 510-7042    44,5 x 1,2-3,2 44,5 (1 3/4") 5,0 3,0 11,5 1,2-3,2
KAP 510-7042    45 x 0,8-3 45 (44,8-1 49/64") 5,0 3,0 11,5 0,8-3
KAP 510-7042    45 x 3-5 45 (44,8-1 49/64") 5,0 3,0 11,5 3-5
KAP 510-7042    46 x 1,5-3,5 46 (1 13/16") 5,0 3,0 11,5 1,5-3,5
KAP 510-7042    48,4 x 1,2-3,6 48,3 (1 29/32") 6,0 3,0 11,5 1,2-3,6
KAP 510-7042    48,4 x 2,5-5,2 48,3 (1 29/32") 6,0 3,0 11,5 2,5-5,2
KAP 510-7042    50 x 1-2,5 50 (1 31/32") 5,0 3,0 11,5 1-2,5
KAP 510-7042    50 x 2,5-4,5 50 (1 31/32") 5,0 3,0 11,5 2,5-4,5
KAP 510-7042    50 x 4,5-6,5 50 (1 31/32") 5,0 3,0 11,5 4,5-6,5
KAP 510-7042    50,8 x 1,2-3 50,8 (2") 5,0 3,0 11,5 1,2-3
KAP 510-7042    52 x 1,5-3,5 52 (2 3/64") 5,0 3,0 14,5 1,5-3,5
KAP 510-7042    55 x 1-3 55 (54,8-2 5/32") 5,0 3,0 14,5 1-3
KAP 510-7042    55 x 3-5 55 (54,8-2 5/32") 5,0 3,0 14,5 3-5
KAP 510-7042    57,2 x 1,2-2,7 57,2 (2 1/4") 5,0 3,0 14,5 1,2-2,7
KAP 510-7042    60 x 1-3 60 (59,9-2 23/64") 5,0 4,0 18,0 1-3
KAP 510-7042    60 x 3-5 60 (59,9-2 23/64") 5,0 4,0 18,0 3-5
KAP 510-7042    63,5 x 1,5-3,5 63,5 (2 1/2") 5,0 4,5 21,0 1,5-3,5
KAP 510-7042    65 x 1,5-3,5 65 (65,1-2 9/16") 5,0 4,5 21,0 1,5-3,5
KAP 510-7042    65 x 3-5 65 (65,1-2 9/16") 5,0 4,5 21,0 3-5
KAP 510-7042    70 x 1-3,5 70 (69,9-2 3/4") 5,0 4,5 21,0 1-3,5
KAP 510-7042    70 x 2-4,5 70 (69,9-2 3/4") 5,0 4,0 21,0 2-4,5
KAP 510-7042    75 x 1-3,5 75 (2 61/64") 6,0 4,5 21,0 1-3,5
KAP 510-7042    75 x 3-5 75 (2 61/64") 6,0 5,0 21,0 3-5
KAP 510-7042    76,2 x 1,5-4 76,2 (3") 6,0 4,5 21,0 1,5-4
KAP 510-7042    76,2 x 3,5-6 76,2 (3") 6,0 4,5 21,0 3,5-6
KAP 510-7042    80 x 1,5-3 80 (79,8-3 9/64") 4,0 5,0 21,0 1,5-3
KAP 510-7042    80 x 3-5,5 80 (79,8-3 9/64") 6,0 5,0 21,0 3-5,5
KAP 510-7042    82,6 x 2-4,5 82,6 (3 1/4") 6,0 5,0 21,0 2-4,5
KAP 510-7042    85x1,5-4 85 (84,9-3 11/32") 6,0 5,0 21,0 1,5-4
KAP 510-7042    85 x 3,5-6 85 (84,9-3 11/32") 6,0 4,5 21,0 3,5-6
KAP 510-7042    88,9 x 1,8-4 88,9 (3 1/2") 6,0 4,5 21,0 1,8-4
KAP 510-7042    88,9 x 3,5-6 88,9 (3 1/2") 6,0 4,5 21,0 3,5-6
KAP 510-7042    90 x 1,5-4 90 (90,1-3 35/64") 6,0 4,5 21,0 1,5-4
KAP 510-7042    90 x 2,5-5 90 (90,1-3 35/64") 5,0 4,5 20,0 2,5-5
KAP 510-7042    95 x 1,5-4 95 (95,3-3 3/4") 6,0 4,5 21,0 1,5-4
KAP 510-7042    100 x 1,5-4 100 (3 5/16") 6,0 5,0 28,0 1,5-4
KAP 510-7042    101,6 x 3,6-6 101,6 (4") 6,0 5,0 28,0 3,6-6
KAP 510-7042    102 x 2-4 102 (4 1/64") 5,0 6,0 20,0 2-4
KAP 510-7042    105 x 2-4,5 105 (104,8-4 1/8") 6,0 5,0 28,0 2-4,5
KAP 510-7042    108 x 2,5-4,5 108 (4 1/4") 6,0 5,0 28,0 2,5-4,5
KAP 510-7042    110 x 2-4,5 110 (109,9- 4 21/64") 6,0 5,0 28,0 2-4,5
KAP 510-7042    114,3 x 3,2-5,5 114,3 (4 1/2") 6,0 5,0 28,0 3,2-5,5
KAP 510-7042    120 x 2-4 120 (119,9-4 23/32") 6,0 5,0 28,0 2-4
KAP 510-7042    125 x 2-6 125 (4 59/64") 6,0 6,0 34,0 2-6
KAP 510-7042    127 x 3,2-7 127 (5") 6,0 6,0 34,0 3,2-7
KAP 510-7042    130 x 2-6 130 (129,8-5 7/64") 6,0 6,0 34,0 2-6
KAP 510-7042    133 x 2-6 133 (5 15/64") 6,0 6,0 34,0 2-6
KAP 510-7042    140 x 2-6,5 140 (139,7-5 1/2") 6,0 6,0 34,0 2-6,5
KAP 510-7042    150 x 2-7 150 (5 29/32") 6,0 6,0 34,0 2-7
KAP 510-7042    152,4 x 3,2-7,5 152,4 (6") 6,0 6,0 34,0 3,2-7,5
KAP 510-7042    159 x 2-6,5 159 (158,8-6 1/4") 6,0 6,0 34,0 2-6,5
KAP 510-7042    160 x 2,5-7 160 (159,9-6 19/64") 6,0 6,0 34,0 2,5-7
KAP 510-7042    165,1 x 3,2-7,5 165,1 (6 1/2") 6,0 6,0 34,0 3,2-7,5
KAP 510-7042    168,3 x 2-6,5 168,3 (6 5/8") 6,0 6,0 34,0 2-6,5
KAP 510-7042    177,8 x 3,2-8 177,8 (7") 6,0 6,0 34,0 3,2-8
KAP 510-7042    193,7 x 2,9-8 193,7 (7 5/8") 6,0 6,0 34,0 2,9-8
