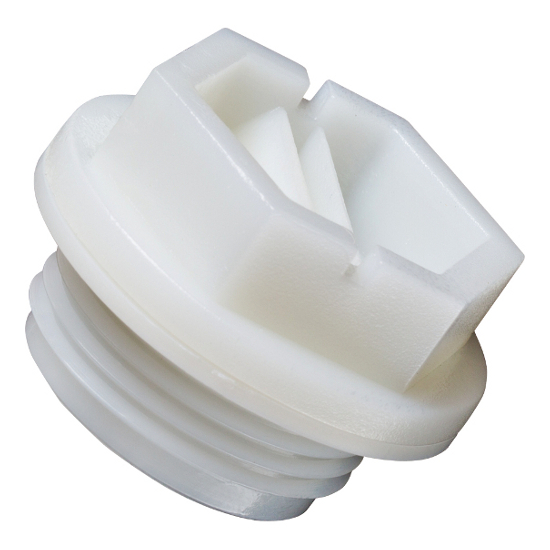

KAP 7000-M

  • THREADED PLUGS WITH HEXAGONAL HEAD AND GASKET FOR METRIC THREADS
  • Material: PA 6.6 / PLUG - TPE / GASKET
  • Colour: natural

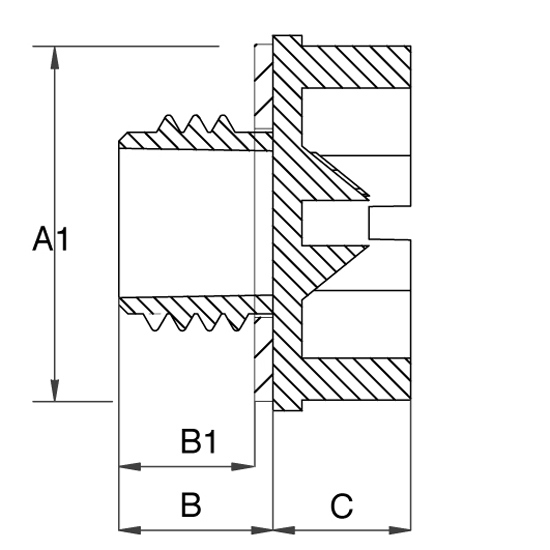

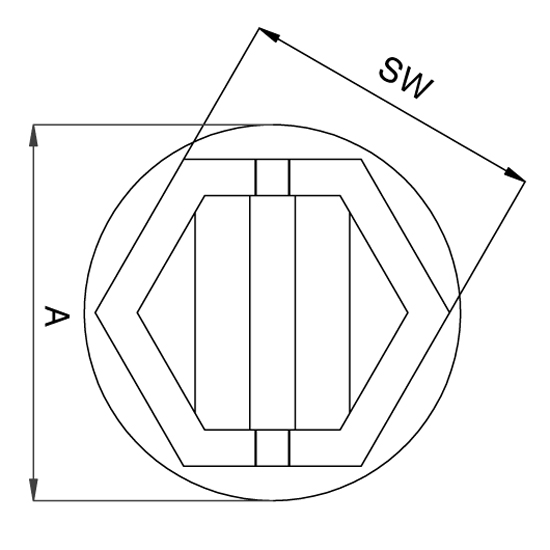

  • Dimensions: mm.

REFERENCEMATERIAL
COLOUR		AA1BB1CSW
KAP 7000 M 5x0,8
WITH GASKET		 PA 6.6 - NATURAL 11 10 7 6 5 8
KAP 7000 M 6x0.75
WITH GASKET		 PA 6.6 - NATURAL 12 11 7 6 5 10
KAP 7000 M 6x1
WITH GASKET		 PA 6.6 - NATURAL 12 11 7 6 5 10
KAP 7000 M 8x1
WITH GASKET		 PA 6.6 - NATURAL 11 10 7 6 5 8
KAP 7000 M 8x1,25
WITH GASKET		 PA 6.6 - NATURAL 16,7 15,7 8,5 7,5 8 12
KAP 7000 M 10x1 - A 16,5
WITH GASKET		 PA 6.6 - NATURAL 16,5 15,5 8,5 7,5 8 13
KAP 7000 M 10x1 - A 20,7
WITH GASKET		 PA 6.6 - NATURAL 20,7 19,7 8,5 7,5 8 17
KAP 7000 M 10x1,25
WITH GASKET		 PA 6.6 - NATURAL 20,7 19,7 8,5 7,5 7,6 13
KAP 7000 M 10x1,5
WITH GASKET		 PA 6.6 - NATURAL 16,5 15,5 8,5 7,5 7,6 13
KAP 7000 M 12x1
WITH GASKET		 PA 6.6 - NATURAL 20,9 19,9 8,5 7,5 8 17
KAP 7000 M 12x1,5
WITH GASKET		 PA 6.6 - NATURAL 20,7 19,7 8,5 7,5 7,4 17
KAP 7000 M 12x1,5 - L
WITH GASKET		 PA 6.6 - NATURAL 20,7 19,7 11,5 10,5 7,4 17
KAP 7000 M 12x1,75 - A 20,7
WITH GASKET		 PA 6.6 - NATURAL 20,7 19,7 8,5 7,5 7,4 17
KAP 7000 M 12x1,75 - A 21,2
WITH GASKET		 PA 6.6 - NATURAL 21,2 20,2 8,5 7,5 8 17
KAP 7000 M 14x1,5
WITH GASKET		 PA 6.6 - NATURAL 20,9 19,9 8,5 7,5 8 17
KAP 7000 M 14x1,5 - L
WITH GASKET		 PA 6.6 - NATURAL 20,9 19,9 11,5 9,5 7,4 17
KAP 7000 M 16x1,5 - A 20,8
WITH GASKET		 PA 6.6 - NATURAL 20,8 19,8 8,5 7,5 8 17
KAP 7000 M 16x1,5 - A 22,8
WITH GASKET		 PA 6.6 - NATURAL 22,8 21,8 8,5 7,5 8 17
KAP 7000 M 16x1,5 - A 32
WITH GASKET		 PA 6.6 - NATURAL 32 31 8,5 7,5 8 17
KAP 7000 M 16x2
WITH GASKET		 PA 6.6 - NATURAL 22,8 21,8 8,5 7,5 8 17
KAP 7000 M 18x1,5
WITH GASKET		 PA 6.6 - NATURAL 28,7 27,7 8,5 7,5 8 22
KAP 7000 M 18x1,5-L
WITH GASKET		 PA 6.6 - NATURAL 28,7 27,7 24 23 8 22
KAP 7000 M 20x1,5
WITH GASKET		 PA 6.6 - NATURAL 27,5 26,5 8,5 7,5 8 22
KAP 7000 M 20x1,5 - L
WITH GASKET		 PA 6.6 - NATURAL 27,5 26,5 13,5 11,5 7,6 22
KAP 7000 M 20x2,5
WITH GASKET		 PA 6.6 - NATURAL 27,1 26,1 8,5 7,5 8 22
KAP 7000 M 22x1,5 - A 28,5
WITH GASKET		 PA 6.6 - NATURAL 28,5 27,5 8,5 7,5 8 22
KAP 7000 M 22x1,5 - A 32
WITH GASKET		 PA 6.6 - NATURAL 32 31 11,5 10,5 8 22
KAP 7000 M 24x1,5
WITH GASKET		 PA 6.6 - NATURAL 32 31 11,5 9,5 8 22
KAP 7000 M 25x1,5
WITH GASKET		 PA 6.6 - NATURAL 34,9 33,9 15 13 8 27
KAP 7000 M 26x1,5
WITH GASKET		 PA 6.6 - NATURAL 35,4 34,4 11,7 9,7 10 27
KAP 7000 M 27x2
WITH GASKET		 PA 6.6 - NATURAL 35,4 34,4 11,7 9,7 10 27
KAP 7000 M 30x2
WITH GASKET		 PA 6.6 - NATURAL 38,6 37,6 11,7 9,7 9 27
KAP 7000 M 33x2
WITH GASKET		 PA 6.6 - NATURAL 39 38 11,7 9,7 10 27
KAP 7000 M 42x2
WITH GASKET		 PA 6.6 - NATURAL 53,8 52,8 11,7 9,7 10 36
KAP 7000 M 48x2 - A 56,3
WITH GASKET		 PA 6.6 - NATURAL 56,3 55,3 15 13 10 36
KAP 7000 M 48x2 - A 60
WITH GASKET		 PA 6.6 - NATURAL 60 59 15 13 10 36
