| REFERENCE | MATERIAL COLOUR | A | A1 | B | B1 | C | SW |
|---|---|---|---|---|---|---|---|
| KAP 7000 7/16"-20 UNF - L WITH GASKET |
PA 6.6 - NATURAL | 21 | 20 | 11,5 | 9,5 | 7,6 | 17 |
| KAP 7000 7/16"-20 UNF - A 21 WITH GASKET |
PA 6.6 - NATURAL | 21 | 20 | 8,5 | 7,5 | 8 | 17 |
| KAP 7000 7/16"-20 UNF - A 24,8 WITH GASKET |
PA 6.6 - NATURAL | 24,8 | 23,8 | 8,5 | 7,5 | 8 | 17 |
| KAP 7000 1/2"-20 UNF WITH GASKET |
PA 6.6 - NATURAL | 20,8 | 19,8 | 8,5 | 7,5 | 8 | 17 |
| KAP 7000 9/16"-18 UNF WITH GASKET |
PA 6.6 - NATURAL | 21 | 20 | 8,5 | 6,5 | 7,5 | 17 |
| KAP 7000 9/16"-18 UNF - L WITH GASKET |
PA 6.6 - NATURAL | 21 | 20 | 11,5 | 9,5 | 7,5 | 17 |
| KAP 7000 5/8"-18 UNF WITH GASKET |
PA 6.6 - NATURAL | 20,9 | 19,9 | 8,5 | 7,5 | 8 | 17 |
| KAP 7000 3/4"-16 UNF - A 28,7 WITH GASKET |
PA 6.6 - NATURAL | 28,7 | 27,7 | 10,6 | 8,6 | 7,6 | 22 |
| KAP 7000 3/4"-16 UNF - A 32 WITH GASKET |
PA 6.6 - NATURAL | 32 | 31 | 10,6 | 9,6 | 8 | 22 |
| KAP 7000 7/8"-14 UNF - A 28,7 WITH GASKET |
PA 6.6 - NATURAL | 28,7 | 28 | 12 | 10 | 7,6 | 22 |
| KAP 7000 7/8"-14 UNF - A 32 WITH GASKET |
PA 6.6 - NATURAL | 32 | 31 | 12 | 10 | 7,6 | 22 |
| KAP 7000 1-1/16"-12 UNF WITH GASKET |
PA 6.6 - NATURAL | 35 | 34 | 8,5 | 6,5 | 7,6 | 27 |
| KAP 7000 1-1/16"-12 UNF - L WITH GASKET |
PA 6.6 - NATURAL | 35 | 34 | 11,7 | 9,7 | 7,6 | 27 |
| KAP 7000 1-1/16"-12 UNF - A 38 WITH GASKET |
PA 6.6 - NATURAL | 38 | 37 | 17 | 16 | 8 | 27 |
| KAP 7000 1-3/16"-12 UNF WITH GASKET |
PA 6.6 - NATURAL | 38,6 | 37,6 | 11,7 | 9,7 | 10 | 27 |
| KAP 7000 1-3/16"-12 UNF - L WITH GASKET |
PA 6.6 - NATURAL | 38,6 | 36,6 | 20 | 18 | 11 | 27 |
| KAP 7000 1-5/16"-12 UNF - A 44,5 WITH GASKET |
PA 6.6 - NATURAL | 44,5 | 43,5 | 11,7 | 9,7 | 10 | 32 |
| KAP 7000 1-7/16"-12 UNF WITH GASKET |
PA 6.6 - NATURAL | 53,8 | 52,8 | 11,7 | 9,7 | 10 | 36 |
| KAP 7000 1-5/8"-12 UNF WITH GASKET |
PA 6.6 - NATURAL | 53,8 | 52,8 | 11,7 | 9,7 | 10 | 36 |
| KAP 7000 1-7/8"-12 UNF WITH GASKET |
PA 6.6 - NATURAL | 60 | 59 | 15 | 13 | 10 | 36 |
| KAP 7000 1"-8 UNC WITH GASKET |
PA 6.6 - NATURAL | 45,5 | 44,5 | 11,7 | 9,7 | 7,6 | 32 |

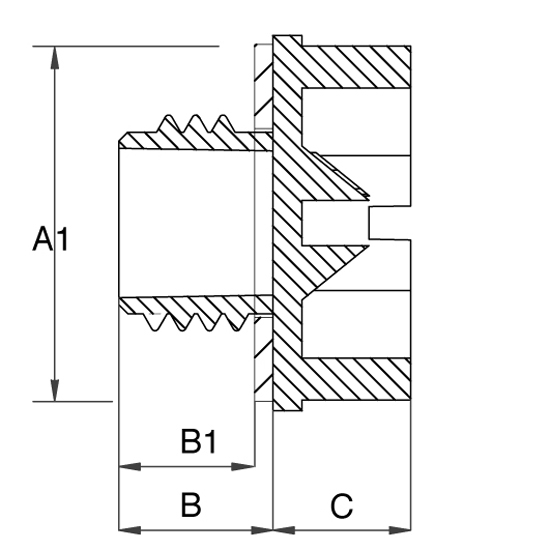

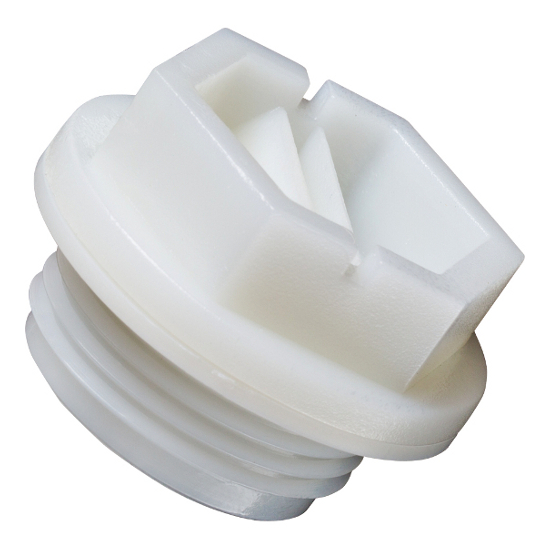

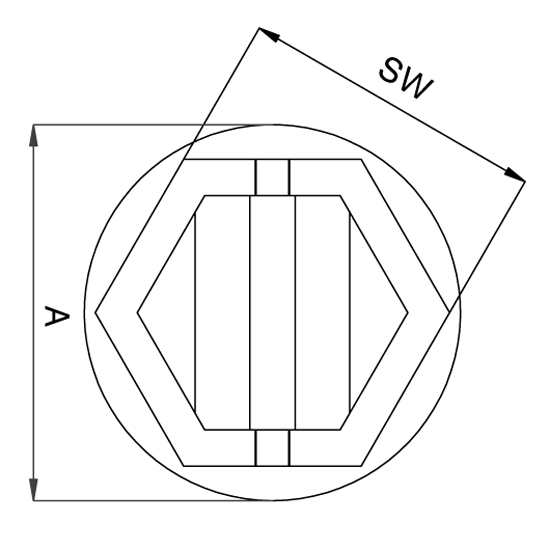

KAP 7000-UNF
- THREADED PLUGS WITH HEXAGONAL HEAD AND GASKET FOR UNF THREADS
- Material: PA 6.6 / PLUG - TPE / GASKET
- Colour: natural
- Dimensions: mm.
